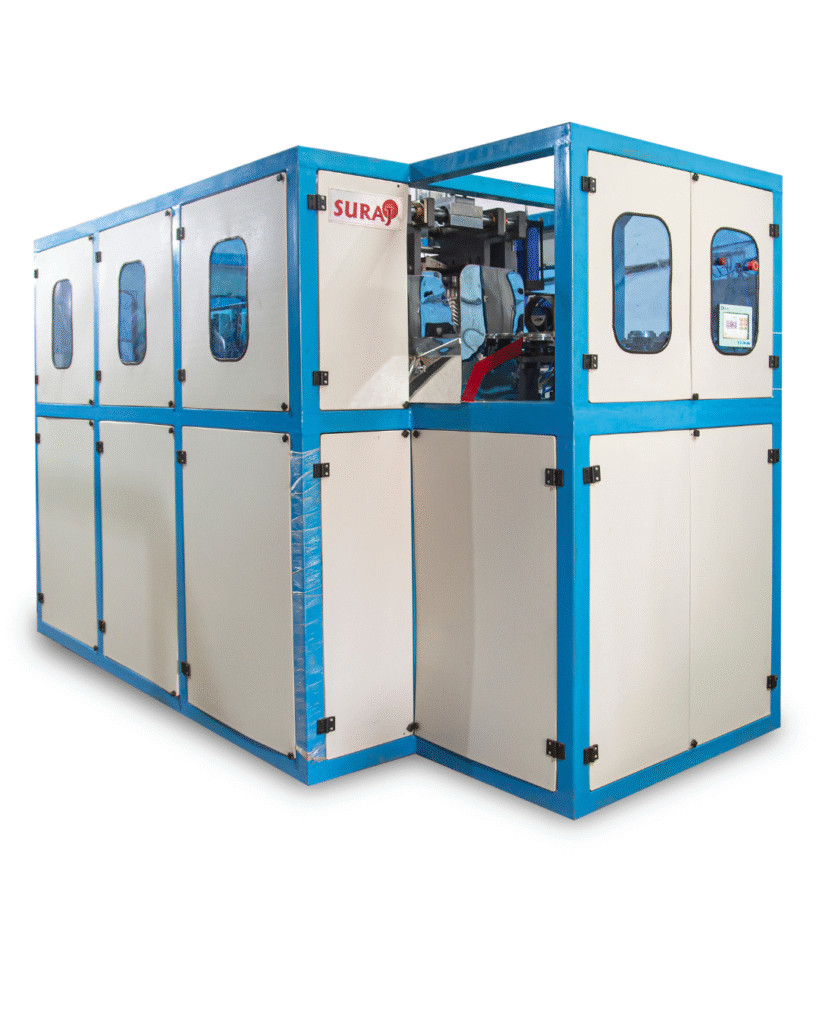

Automatic Hand Feed Blow Moulding Machine
Automatic Hand Feed Blow Moulding Machine
The Automatic Hand Feed Blow Moulding Machine is designed for efficient production of PET bottles and jars with minimal manual effort. It ensures uniform bottle formation and stable performance for beverages, water, cosmetics, household, oil, and chemical packaging industries.
This machine offers smooth mould operation, fast heating, and consistent blowing quality. It supports a wide range of bottle sizes and neck diameters, while maintaining high output rates and reliable long-term performance.
- High Production Capacity — up to 5400 Bottles Per Hour
- Available in 1, 2, 4, and 6 Cavity configurations depending on bottle size
- Supports bottles from 50 ML to 7000 ML with multiple neck diameter options
Technical Specification
| DESCRIPTION / MODEL | SAB-500-6BHF | SAB-500-6BHF | SAB-1000-2BHF | SAB-1000-4BHF | SAB-1000-1JBHF | SAB-2000-2JBHF | SAB-5000-JBHF | |
|---|---|---|---|---|---|---|---|---|
| PRODUCT SIZE | 50 ML – 500 ML | 50 ML – 500 ML | 100 ML – 1000 ML | 100 ML – 1000 ML | 100 ML – 1000 ML | 200 ML – 2000 ML | 1000 ML – 7000 ML | |
| NECK DIAMETER ( MAX ) | 19 MM - 38 MM | 19 MM - 38 MM | 28 MM - 38 MM | 28 MM - 38 MM | 25 MM - 83 MM | 25 MM - 120 MM | 28 MM - 120 MM | |
| BOTTLE DIAMETER ( MAX ) | 70 MM | 70 MM | 90 MM | 90 MM | 90 MM | 130 MM | 160 MM | |
| OUTPUT (THEORETICAL) | 3600-4500 BPH | 4800-5400 BPH | 1800-2400 BPH | 3600-4000 BPH | 900-1600 BPH | 1400-1800 BPH | 700-900 BPH | |
| PRODUCT HEIGHT ( MAX ) | 225 MM | 225 MM | 300 MM | 300 MM | 300 MM | 250 MM | 350 MM | |
| MACHINE CONNECTED LOAD | 36 KW | 40 KW | 24 KW | 24 KW | 24 KW | 36 KW | 40 KW | |
| MOULD | 4 CAVITY | 6 CAVITY | 2 CAVITY | 4 CAVITY | 1 CAVITY | 2 CAVITY | 1 CAVITY | |
| AIR REQUIREMENT (FOR MACHINE OPERATION) | 2M³/MIN@10KG/CM² | 3M³/MIN@10KG/CM² | 2M³/MIN@10KG/CM² | 3M³/MIN@10KG/CM² | 2M³/MIN@10KG/CM² | 3M³/MIN@10KG/CM² | 3M³/MIN@10KG/CM² | |
| AIR REQUIREMENT (FOR BLOWING OPERATION) | 2M³/MIN@25KG/CM² | 3M³/MIN@25KG/CM² | 2M³/MIN@25KG/CM² | 3M³/MIN@25KG/CM² | 2M³/MIN@25KG/CM² | 3M³/MIN@25KG/CM² | 3M³/MIN@25KG/CM² | |
| COLD WATER (FOR MOULD & HEATING SYSTEM) | 3M³/HRS @ 5°C | 4M³/HRS @ 5°C | 3M³/HRS @ 5°C | 3M³/HRS @ 5°C | 3M³/HRS @ 5°C | 4M³/HRS @ 5°C | 4M³/HRS @ 5°C | |
| AREA REQUIRED | 6500X6500X3500 MM | 6500X6500X3500 MM | 7000X7000X3500 MM | 7000X7000X3500 MM | 4500X6500X3500 MM | 8000X7000X3500 MM | 8000X7000X3500 MM | |
| NET WEIGHT | 4 TONNES | 5 TONNES | 4 TONNES | 5 TONNES | 3 TONNES | 5 TONNES | 5 TONNES | |
