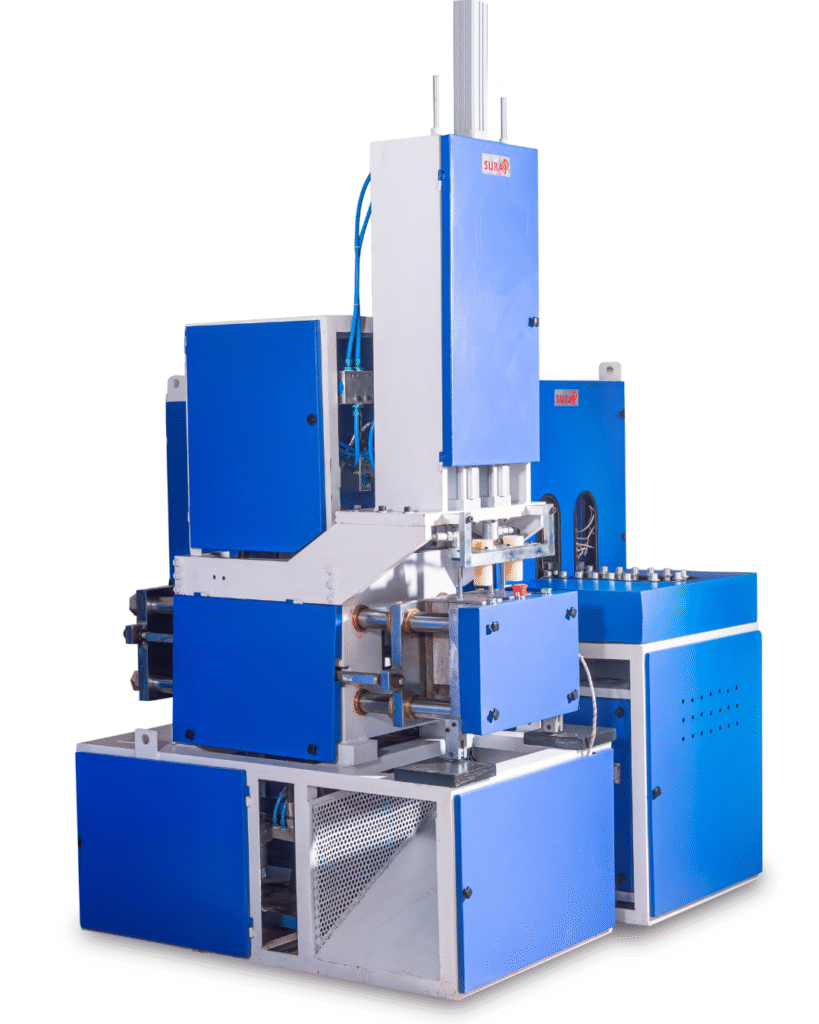

High Speed Semi Automatic Stretch Blow Moulding Machine

High Speed Semi Automatic Stretch Blow Moulding Machine

This High-Speed Semi Automatic Stretch Blow Moulding Machine is engineered for fast and efficient production of PET bottles and jars. It ensures uniform wall thickness, clear bottle finish, and reliable output for beverages, edible oil, cosmetics, household, and chemical packaging.

Equipped with hydro-pneumatic technology and high-performance heating, the machine delivers stable operation with minimal maintenance. Designed for high productivity, it offers smooth mould operation and consistent bottle quality.

  • High Production Speed up to 2400 Bottles Per Hour
  • Available in 2, 3, and 4 Cavity Configurations
  • Hydro-Pneumatic Smooth Operation
  • Supports 50 ML to 7000 ML Bottle / Jar Range
Get Quote

Technical Specification

DESCRIPTION / MODEL HP-1000-2BHS HP-1000-4BHS HP-2000-3BHS HP-2000-3B2JHS
PRODUCT SIZE 50 ML – 1000 ML 50 ML – 1000 ML 50 ML – 2000 ML 50 ML – 7000 ML BOTTLE / JAR
OUTPUT THEORETICAL 1400-1600 BPH UPTO 1 LTR BOTTLE UPTO 28 MM NECK 2000-2400 BPH UPTO 1 LTR BOTTLE UPTO 28 MM NECK 1400-1800 BPH UPTO 2 LTR BOTTLE UPTO 28 MM NECK 1400-1800 BPH UPTO 2LTR / 600-800 BPH UPTO 96 MM
MOULD CAVITY 2 CAVITY 4 CAVITY 3 CAVITY 3 CAVITY UPTO 2LTR / 1 CAVITY 3LTR & ABOVE
NECK SIZE 19-63 MM 19-63 MM 19-63 MM 19-120 MM
HEATER POWER 10 KW 14 KW 14 KW 14 KW
CLAMPING STROKE 150 MM 150 MM 200 MM 250 MM
WORKING PRESSURE 8 KG / CM² 8 KG / CM² 8 KG / CM² 8 KG / CM²
BLOWING PRESSURE 22-25 KG / CM² 22-25 KG / CM² 22-25 KG / CM² 22-25 KG / CM²
AIR REQUIREMENT 1.2 M³/MIN 1.4 M³/MIN 1.4 M³/MIN 1.4 M³/MIN
OPERATION HYDRO-PNEUMATIC HYDRO-PNEUMATIC HYDRO-PNEUMATIC HYDRO-PNEUMATIC
AREA REQUIRED 5 MTR x 5 MTR 5 MTR x 5 MTR 5 MTR x 5 MTR 5 MTR x 5 MTR
STAFF REQUIRED 2 2 2 2
