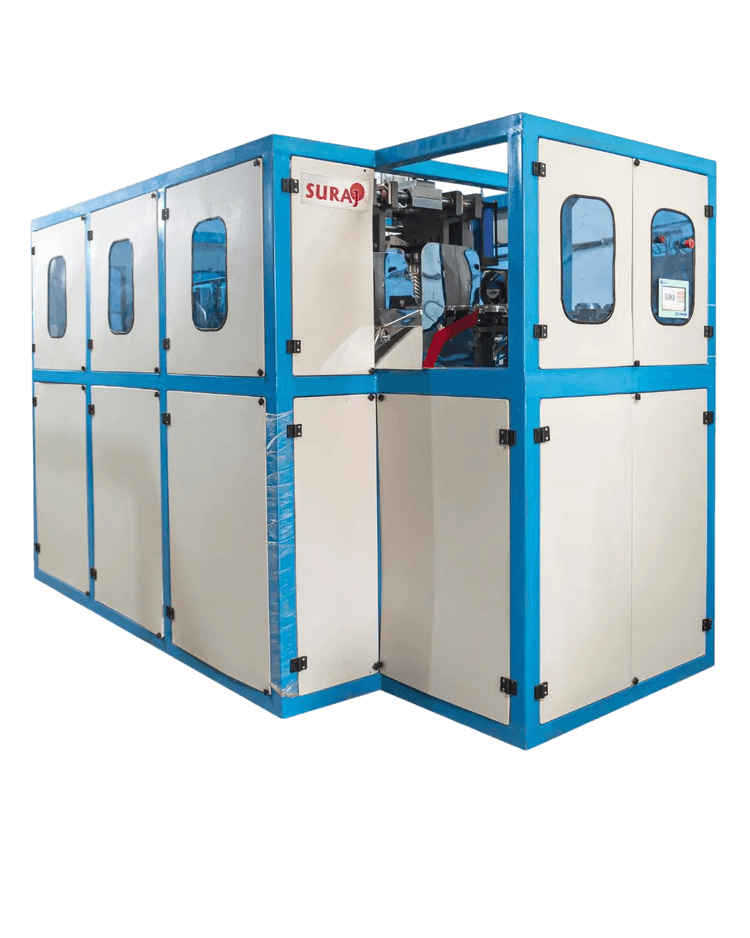

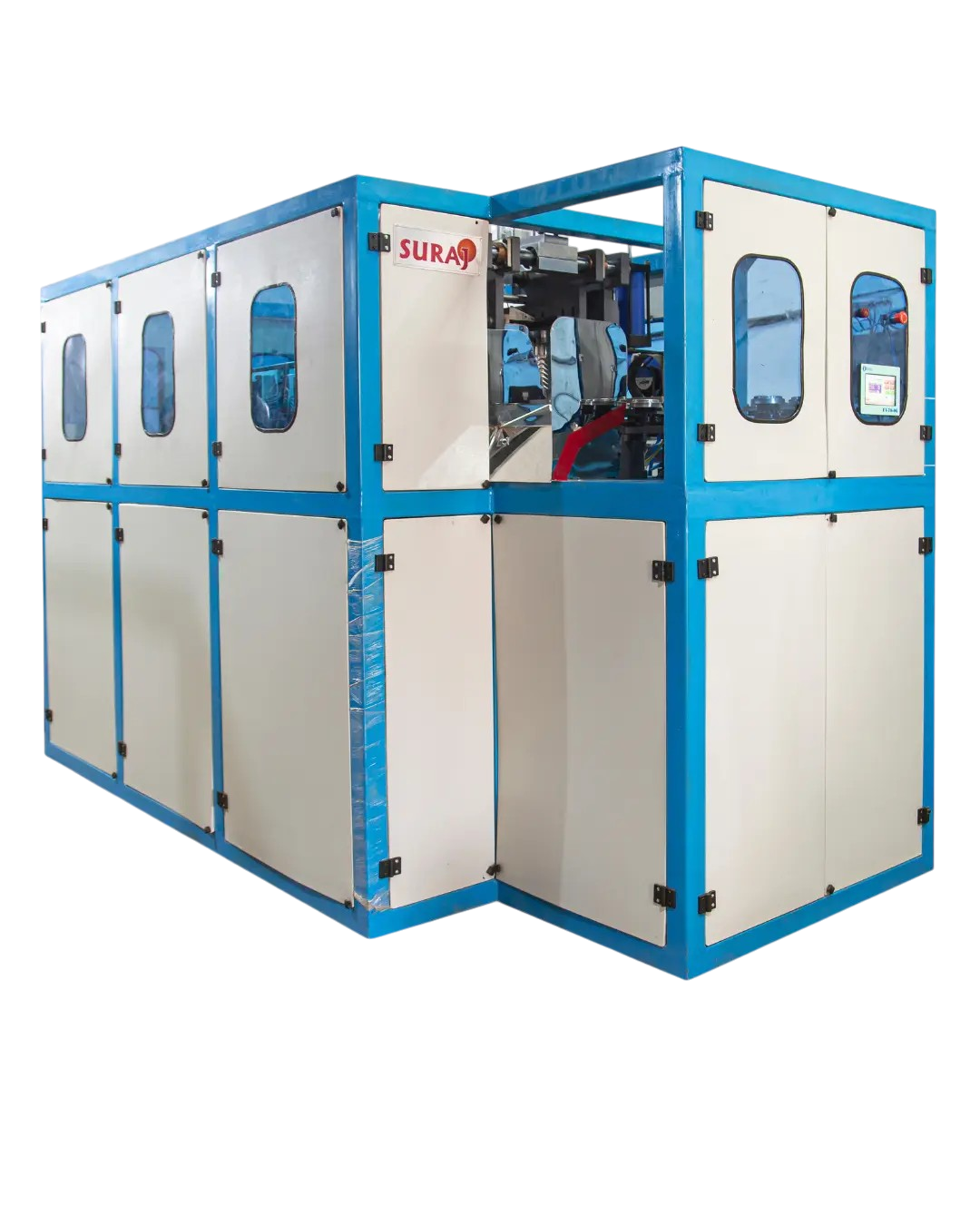

Automatic Hand Feed Pet Perform Stretch Blow Moulding Machine
The Automatic Hand Feed Blow Moulding Machine is designed for efficient production of PET bottles and jars with minimal manual effort. It ensures uniform bottle formation and stable performance for beverages, water, cosmetics, household, oil, and chemical packaging industries.
This machine offers smooth mould operation, fast heating, and consistent blowing quality. It supports a wide range of bottle sizes and neck diameters, while maintaining high output rates and reliable long-term performance.
Technical Specification
| Description / Model | SAB-500-4BHF | SAB-500-6BHF | SAB-1000-2BHF | SAB-1000-4BHF | SAB-2000-2JBHF | SAB-5000-JBHF |
|---|---|---|---|---|---|---|
| Product Size | 50 ML – 500 ML | 50 ML – 500 ML | 100 ML – 1000 ML | 100 ML – 1000 ML | 200 ML – 2000 ML | 1000 ML – 7000 ML |
| Neck Diameter (Max) | 25 MM – 28 MM | 25 MM – 28 MM | 25 MM – 28 MM | 25 MM – 28 MM | 25 MM – 83 MM | 25 MM – 120 MM |
| Bottle Diameter (Max) | 70 MM | 70 MM | 90 MM | 90 MM | 130 MM | 120 MM |
| Output (Theoretical) | 3000–3600 BPH | 4800–5400 BPH | 1700–2000 BPH | 3000–3600 BPH | 1200–1600 BPH | 1200–1600 BPH (Upto 2 LTRS) / 600–800 BPH (Upto 5 LTRS) |
| Product Height (Max) | 250 MM | 250 MM | 300 MM | 300 MM | 250 MM | 350 MM |
| Machine Connected Load | 48 KW | 60 KW | 36 KW | 36 KW | 36 KW | 36 KW |
| Mould | 4 Cavity | 6 Cavity | 2 Cavity | 4 Cavity | 2 Cavity | 2 Cavity Upto 2 LTRS / 1 Cavity 3 LTRS Above |
| Air Requirement | 2 M³/MIN @ 10 KG/CM² | 3 M³/MIN @ 10 KG/CM² | 2 M³/MIN @ 10 KG/CM² | 3 M³/MIN @ 10 KG/CM² | 3 M³/MIN @ 10 KG/CM² | 3 M³/MIN @ 10 KG/CM² |
| Air Requirement (For Blowing Operation) | 2 M³/MIN @ 25 KG/CM² | 3 M³/MIN @ 25 KG/CM² | 2 M³/MIN @ 25 KG/CM² | 3 M³/MIN @ 25 KG/CM² | 3 M³/MIN @ 25 KG/CM² | 3 M³/MIN @ 25 KG/CM² |
| Cold Water (For Mould & Heating System) | 3 M³/HRS @ 5°C | 4 M³/HRS @ 5°C | 3 M³/HRS @ 5°C | 4 M³/HRS @ 5°C | 4 M³/HRS @ 5°C | 4 M³/HRS @ 5°C |
| Area Required | 6500 × 6500 × 3500 MM | 7000 × 7000 × 3500 MM | 7000 × 7000 × 3500 MM | 8000 × 7000 × 3500 MM | 8000 × 7000 × 3500 MM | 8000 × 7000 × 3500 MM |
| NET WEIGHT | 4 TONNES | 5 TONNES | 4 TONNES | 5 TONNES | 5 TONNES | 5 TONNES |
Automatic Hand Feed Blow Moulding Machine — The Smart Middle Ground Between Semi and Fully Automatic
Not every manufacturer needs a fully automatic machine. And not every business wants to stay with semi automatic forever. If you are growing — and you want better output, more consistency, and less operator fatigue — the automatic hand feed blow moulding machine is exactly where you need to be.
AtSuraj Plastic Industries, we manufacture PET preform automatic hand feed blow moulding machines that combine the simplicity of hand feeding with the speed and precision of a fully automatic blowing and ejection system. The operator loads the preform by hand — the machine takes care of everything else automatically.
Result? Up to 5400 bottles per hour, bottle sizes from 50 ML to 7000 ML, and a production line that is faster, cleaner, and more consistent than a standard semi automatic setup.
What Is an Automatic Hand Feed Blow Moulding Machine?
An aautomatic hand feed blow moulding machine is a PET stretch blow moulding machine where the operator manually places the preform into the machine — and the entire blowing, moulding, and bottle ejection process happens automatically from that point onward.
Here is how it works step by step:
Step 1 — Hand Loading
The operator places the heated or unheated PET preform into the machine’s preform holder by hand. This is the only manual step in the entire process.
Step 2 — Infrared Heating
The preform is automatically moved into the infrared heating zone. PLC-controlled temperature management ensures every preform is heated precisely and uniformly — no guesswork, no variation.
Step 3 — Automatic Stretching and Blowing
The heated preform enters the mould. A stretch rod extends it vertically while high-pressure air at 25 KG/CM² expands it outward, shaping it perfectly against the mould walls.
Step 4 — Automatic Bottle Ejection
The finished bottle is automatically ejected from the mould — no operator needed to remove it. It moves directly to the output area ready for the filling line.
This combination — hand feeding with automatic blowing and ejection — gives you higher output, better bottle quality, and significantly less labour dependency compared to a fully manual or standard semi automatic machine.
Our Automatic Hand Feed Machine Range — 6 Models
We offer 6 models to cover every bottle size and production scale:
| Model | Bottle Size | Output (BPH) | Cavities | Connected Load | Machine Weight |
|---|---|---|---|---|---|
| SAB-500-4BHF | 50 ML – 500 ML | 3000–3600 | 4 Cavity | 48 KW | 4 Tonnes |
| SAB-500-6BHF | 50 ML – 500 ML | 4800–5400 | 6 Cavity | 60 KW | 5 Tonnes |
| SAB-1000-2BHF | 100 ML – 1000 ML | 1700–2000 | 2 Cavity | 36 KW | 4 Tonnes |
| SAB-1000-4BHF | 100 ML – 1000 ML | 3000–3600 | 4 Cavity | 36 KW | 5 Tonnes |
| SAB-2000-2JBHF | 200 ML – 2000 ML | 1200–1600 | 2 Cavity | 36 KW | 5 Tonnes |
| SAB-5000-JBHF | 1000 ML – 7000 ML | 600–1600 | 1–2 Cavity | 36 KW | 5 Tonnes |
Neck diameter range: 25 MM – 120 MM (model dependent) Max bottle diameter: 70 MM – 130 MM (model dependent) Blowing pressure: 25 KG/CM² Area required: 6500×6500 MM to 8000×7000 MM Cold water requirement: 3–4 M³/HRS @ 5°C
Key Features of Our Automatic Hand Feed Blow Moulding Machine
Who Is This Machine Best For?
The automatic hand feed blow moulding machine is the right choice when:
How It Compares — Automatic Hand Feed vs Other Machine Types
| Feature | Semi Automatic | Auto Hand Feed | Fully Automatic |
|---|---|---|---|
| Preform Loading | Manual | Manual (Hand Feed) | Fully Automatic |
| Blowing Process | Automatic | Automatic | Automatic |
| Bottle Ejection | Manual | Automatic | Automatic |
| Max Output (BPH) | 700 | 5400 | 6000+ |
| Bottle Size Range | 50 ML – 25 LTR | 50 ML – 7000 ML | 50 ML – 2000 ML |
| Labour Required | 2 Operators | 1–2 Operators | 1 Supervisor |
| Best For | Small Plants | Mid-to-Large Plants | Large Scale Plants |
| Investment Level | Lower | Medium | Higher |
The automatic hand feed machine sits perfectly between semi automatic and fully automatic — giving you the speed and consistency upgrade you need, at a more accessible investment level.
Applications — What Products Can Be Made?
Packaged Drinking Water and Mineral Water
- 200 ML, 500 ML, 1-litre, 2-litre bottles and up to 5-litre water jars — all producible with the right model.
Beverages — Juices, Energy Drinks, Flavoured Water
- Consistent bottle quality for juice and beverage lines where clarity and shape uniformity matter for shelf appeal.
Edible Oil and Food Packaging
- Cooking oil, mustard oil, and sauce bottles in 500 ML to 2-litre sizes — food-safe, strong, and clear.
Pharmaceuticals
- Syrup and liquid medicine bottles with precise neck dimensions and consistent wall thickness for accurate dosing.
Cosmetics and Personal Care
- Shampoo, conditioner, body lotion, and hair oil bottles in 50 ML to 500 ML — premium finish, crystal clarity.
Household and Cleaning Products
- Detergent, floor cleaner, and dishwash liquid bottles — durable and suitable for chemical-grade packaging.
Industrial Containers
- Large jars and containers from 3 litres to 7 litres using the SAB-5000-JBHF model — for industrial, agro, and commercial use.
Industries We Serve
Why Choose Suraj Plastic Industries?
28+ Years in PET Blow MouldingDirect Manufacturer — No Middlemen
Every automatic hand feed blow moulding machine is manufactured at our facility in Nangloi, New Delhi. You get factory-direct pricing, direct technical support, and a team that actually knows the machine inside out.
28+ Years in PET Blow Moulding
We have been manufacturing PET preform stretch blow moulding machines since 1997. Our automatic hand feed range has been refined over years of real-world production feedback from customers across India.
1480+ Successful Installations
Over 1480 machines installed across India and abroad. Our track record is proof that our machines work — reliably, consistently, and for the long term.
ISO 9001-2015 Certified Manufacturing
Our quality management system meets international ISO standards — from component sourcing and assembly to testing and dispatch.
NSIC Best Technology Award — 1999
Awarded by the Government of India. A recognition of our commitment to manufacturing excellence that we continue to uphold.
On-Site Installation and Training
Our technical team visits your facility for machine installation, commissioning, and hands-on operator training. We do not consider the job done until your production line is running smoothly.
Fast Spare Parts Supply
We stock spare parts for all our machine models at our New Delhi facility. Quick dispatch across India — no long waiting periods.
Frequently Asked Questions (FAQs)
An Automatic Hand Feed Blow Moulding Machine is a semi-automated blow moulding system where preforms are manually loaded (hand-fed) into the machine by an operator, while the heating, stretching, and blowing stages are performed automatically. It combines manual preform placement with automated bottle-forming, making it a cost-effective option for small to medium-scale PET bottle manufacturing.
In an Automatic Hand Feed Blow Moulding Machine, an operator manually places preforms into the machine, while heating and blowing are automated. In a fully automatic machine, preform loading, heating, blowing, and bottle ejection all happen without manual intervention, resulting in higher output but a higher upfront investment.
Automatic Hand Feed Blow Moulding Machines offer better process consistency and higher output than fully manual machines, since the heating and blowing stages are automated, while still keeping the initial machine cost lower than a fully automatic system — making it ideal for growing businesses with moderate production needs.
Depending on the mould configuration, these machines can typically produce PET bottles ranging from small 100ml containers up to several-litre jars, making them suitable for water, oil, pharmaceutical, and household chemical packaging.
Yes, Automatic Hand Feed Blow Moulding Machines are well-suited for startups and small-to-medium manufacturers who need better consistency than fully manual machines but aren't ready for the higher investment and volume commitment of a fully automatic production line.
These machines are commonly used in packaged drinking water, edible oil, pharmaceutical, cosmetics, and household chemical packaging industries — particularly by manufacturers producing moderate volumes where full automation isn't yet cost-justified.
Routine maintenance includes checking IR heating lamp performance, inspecting mould alignment, servicing the air compressor and pneumatic system, and lubricating stretching mechanisms to ensure consistent bottle quality over time.
Cost depends on cavity count, mould size, and machine build quality. Since these machines require less automation infrastructure than fully automatic systems, they're generally more affordable — contact Suraj Plastic Industries for a customized quote based on your production requirements.
Upgrade Your Production Line Today
If your current semi automatic machine is limiting your growth — or you want a smarter, faster, and more efficient production setup without the full investment of a completely automatic line — our automatic hand feed blow moulding machine is the right next step.
