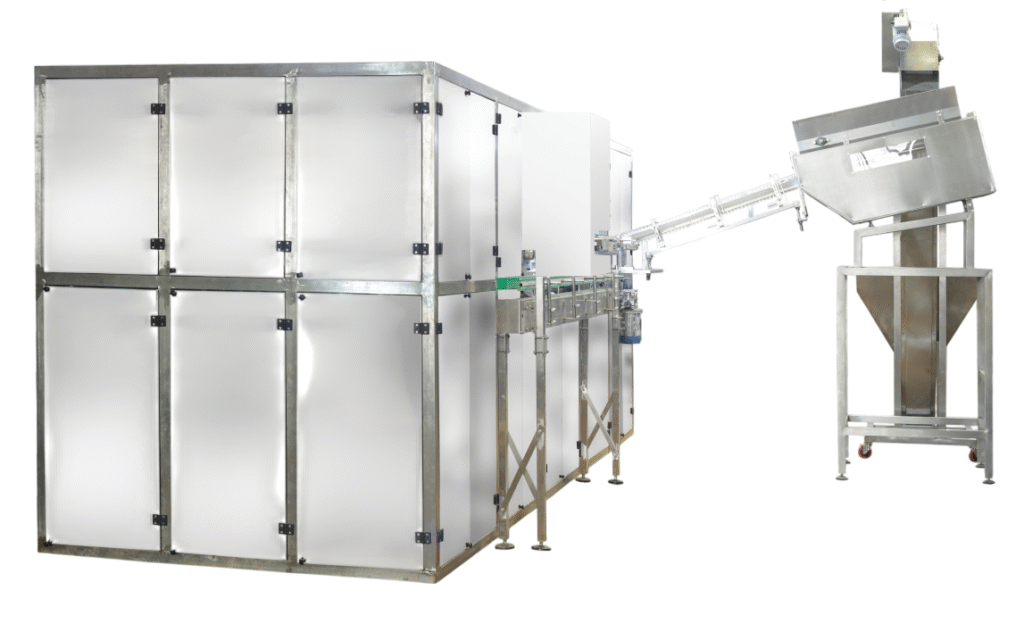

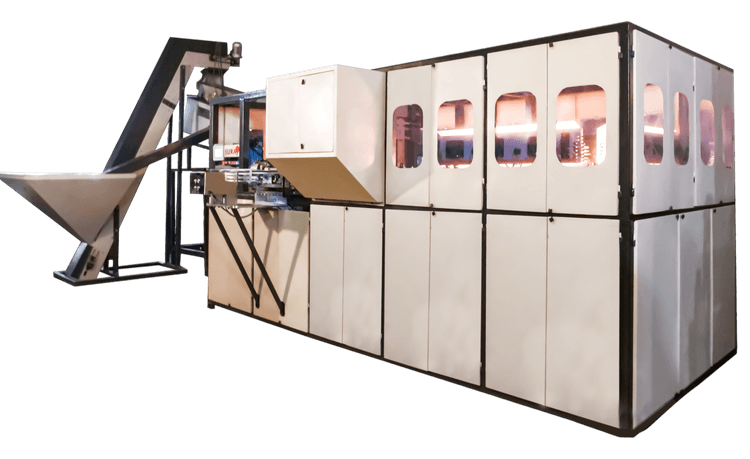

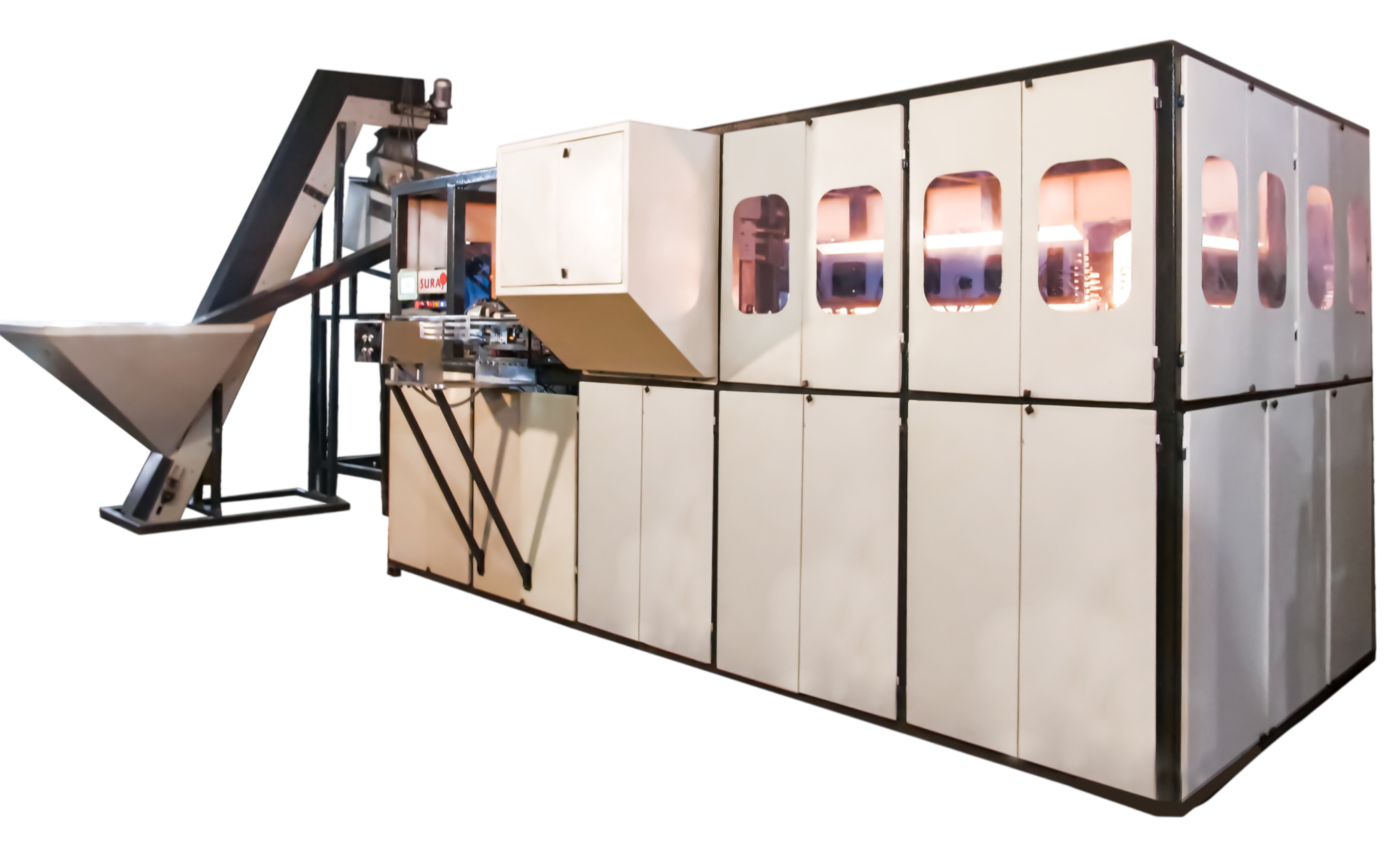

Fully Automatic Stretch Blow Moulding Machine
Equipped with intelligent heating control and stable mould clamping, the machine delivers smooth, fast, and highly efficient production. Its fully automated feeding and blowing system improves productivity while reducing labor cost and downtime.
Technical Specification
| Description | SAB-500-4B | SAB-500-6B | SAB-1000-2B | SAB-1000-4B | SAB-1000-6B | SAB-2000-2B |
|---|---|---|---|---|---|---|
| Product Size | 50 ML – 500 ML | 50 ML – 500 ML | 100 ML – 1000 ML | 100 ML – 1000 ML | 100 ML – 1000 ML | 200 ML – 2000 ML |
| Neck Diameter (Max) | 25 MM – 28 MM | 25 MM – 28 MM | 25 MM – 28 MM | 25 MM – 28 MM | 25 MM – 28 MM | 25 MM – 28 MM |
| Bottle Diameter (Max) | 70 MM | 70 MM | 90 MM | 90 MM | 90 MM | 110 MM |
| Output (Theoretical) | 3600–4000 BPH | 5400–6000 BPH | 1700–2000 BPH | 3400–4000 BPH | 5400–6000 BPH | 1400–1800 BPH |
| Product Height (Max) | 250 MM | 250 MM | 300 MM | 300 MM | 300 MM | 350 MM |
| Machine Connected Load | 48 KW | 60 KW | 36 KW | 48 KW | 60 KW | 36 KW |
| Mould | 4 Cavity | 6 Cavity | 2 Cavity | 4 Cavity | 6 Cavity | 2 Cavity |
| Air Requirement (For Machine Operation) | 2M³/MIN@10KG/CM² | 3M³/MIN@10KG/CM² | 2M³/MIN@10KG/CM² | 3M³/MIN@10KG/CM² | 4M³/MIN@10KG/CM² | 3M³/MIN@10KG/CM² |
| Air Requirement (For Blowing Operation) | 2M³/MIN@25KG/CM² | 3M³/MIN@25KG/CM² | 2M³/MIN@25KG/CM² | 3M³/MIN@25KG/CM² | 4M³/MIN@25KG/CM² | 3M³/MIN@25KG/CM² |
| Cold Water (For Mould & Heating System) | 3M³/HRS @5°C | 4M³/HRS @5°C | 3M³/HRS @5°C | 4M³/HRS @5°C | 5M³/HRS @5°C | 4M³/HRS @5°C |
| Area Required | 6500×6500×3500 MM | 7000×7000×3500 MM | 7000×7000×3500 MM | 8000×7000×3500 MM | 8000×7000×3500 MM | 8000×7000×3500 MM |
| Net Weight | 5 Tonnes | 6 Tonnes | 6 Tonnes | 5 Tonnes | 7 Tonnes | 6 Tonnes |
A Fully Automatic Stretch Blow Moulding Machine is an industrial machine used to manufacture PET (Polyethylene Terephthalate) bottles, jars, and containers through a two-stage or single-stage stretch blow moulding process. This machine heats PET preforms and then stretches and blows them into a mould cavity using high-pressure air, producing bottles used in packaging industries such as beverages, pharmaceuticals, edible oils, cosmetics, and household chemicals.
Unlike semi-automatic machines that require manual preform loading and bottle unloading, a fully automatic machine handles the entire cycle — preform feeding, heating, stretching, blowing, and bottle ejection — without manual intervention. This results in higher output, consistent bottle quality, and lower labour dependency.
At Suraj Plastic Industries, we design and manufacture Fully Automatic Stretch Blow Moulding Machines that are trusted by packaging manufacturers across India for their durability, precision engineering, and after-sales support.
Fully Automatic Stretch Blow Moulding Machine — High Speed. Zero Compromise.
When your production target demands speed, consistency, and round-the-clock reliability — a fully automatic stretch blow moulding machine is the answer.
AtSuraj Plastic Industries, we manufacture fully automatic PET preform stretch blow moulding machines designed for high-volume bottle production. With output capacities reaching up to 7200 bottles per hour, intelligent PLC control systems, and 2, 4, and 6 cavity configurations — our machines are built for manufacturers who cannot afford downtime or inconsistency.
Whether you run a large packaged drinking water plant, a beverage production line, or an FMCG packaging unit — this machine delivers the output you need, shift after shift.
What Is a Fully Automatic Stretch Blow Moulding Machine?
A fully automatic stretch blow moulding machine converts PET preforms into finished bottles — with zero manual intervention at any stage.
Here is how the process works:
Step 1 — Automatic Preform Loading
PET preforms are loaded into the hopper. The machine automatically feeds, orients, and positions each preform — no operator needed at this stage.
Step 2 — Infrared Heating
Preforms pass through an infrared heating zone. The temperature is precisely controlled by a PLC system to ensure every preform is heated uniformly before entering the mould.
Step 3 — Stretch Blowing
The heated preform enters the mould. A stretch rod extends it vertically while high-pressure air (up to 25 KG/CM²) expands it outward against the mould walls — forming the final bottle shape.
Step 4 — Automatic Bottle Ejection
The finished bottle is automatically ejected and moved to the output conveyor — ready for filling, capping, and labelling downstream.
The entire cycle happens continuously and automatically — no operator contact, no manual loading, no manual ejection. Pure production.
Our Fully Automatic Machine Range — 6 Models
We offer 6 models to match different bottle sizes and output targets:
| Model | Bottle Size | Output (BPH) | Cavities | Connected Load |
|---|---|---|---|---|
| SAB-500-4B | 50 ML – 500 ML | 3600–4000 | 4 Cavity | 48 KW |
| SAB-500-6B | 50 ML – 500 ML | 5400–6000 | 6 Cavity | 60 KW |
| SAB-1000-2B | 100 ML – 1000 ML | 1700–2000 | 2 Cavity | 36 KW |
| SAB-1000-4B | 100 ML – 1000 ML | 3400–4000 | 4 Cavity | 48 KW |
| SAB-1000-6B | 100 ML – 1000 ML | 5400–6000 | 6 Cavity | 60 KW |
| SAB-2000-2B | 200 ML – 2000 ML | 1400–1800 | 2 Cavity | 36 KW |
Max neck diameter: 25 MM – 28 MM across all models Max bottle diameter: 70 MM – 110 MM depending on model Blowing pressure: 25 KG/CM² Cold water required: 3–5 M³/HRS @ 5°C (for mould and heating system cooling)
Key Features of Our Fully Automatic Stretch Blow Moulding Machine
Fully Automatic vs Semi-Automatic Stretch Blow Moulding Machine
| Parameter | Fully Automatic Machine | Semi-Automatic Machine |
|---|---|---|
| Operator Involvement | Minimal (loading/unloading automated) | Manual preform loading & bottle removal |
| Production Speed | High output, suited for large-scale production | Lower output, suited for small-scale production |
| Labour Cost | Lower, since process is automated | Higher, due to manual handling |
| Consistency | High consistency across batches | Depends on operator skill |
| Initial Investment | Higher upfront cost | Lower upfront cost |
| Best Suited For | Medium to large PET bottle manufacturers | Small-scale or startup manufacturers |
Choose semi automatic if: You are starting out, have a smaller production target, or want to keep initial investment low.
Choose fully automatic if: You have a large production target, want to minimise labour dependency, and need maximum output consistency at scale.
Applications — Where This Machine Is Used
Our fully automatic stretch blow moulding machine is used across many industries:
Packaged Drinking Water & Mineral Water
- High-speed production of 200 ML, 500 ML, 1-litre, and 2-litre water bottles for large water plants and national brands.
Beverages — Juices, CSD, Energy Drinks
- Consistent bottle quality for carbonated and non-carbonated beverage lines where output speed and bottle clarity are critical.
Edible Oil Packaging
- Sturdy, food-safe PET bottles for cooking oil, mustard oil, and refined oil packaging.
Pharmaceuticals
- Precise bottle dimensions and clean production environment for syrup, suspension, and liquid medicine packaging.
Cosmetics and Personal Care
- Premium finish bottles for shampoo, conditioner, body lotion, and personal care products.
Household and Cleaning Products
- Detergent bottles, floor cleaner containers, and liquid soap packaging.
Why Choose Suraj Plastic Industries?
Direct Manufacturer — New Delhi
We are not a trader or agent. Every fully automatic stretch blow moulding machine is manufactured at our facility in Nangloi, New Delhi. Direct factory pricing, no markup.
28+ Years in PET Blow Moulding
We have been manufacturingPET preform stretch blow moulding machinessince 1997. Our machines have been installed in water plants, beverage lines, and packaging units across India and abroad.
1480+ Successful Installations
Our track record speaks for itself. Over 1480 satisfied customers across India and internationally. Machines that run reliably, year after year.
ISO 9001-2015 Certified
Our manufacturing and quality management processes meet international ISO standards — so you get a machine that is built right, every time.
NSIC Best Technology Award — 1999
Awarded by the Government of India for technology excellence in manufacturing. A recognition we are proud of and continue to live up to.
Installation & Commissioning at Your Site
Our technical team handles complete installation, commissioning, and operator training at your facility — wherever you are in India.
After-Sales Support & Spare Parts
We stock spare parts for all our machine models and dispatch them quickly. Our technical team is available for on-site support when needed.
Industries We Serve
Frequently Asked Questions (FAQs)
A Fully Automatic Stretch Blow Moulding Machine is used to manufacture PET bottles, jars, and containers for industries like beverages, pharmaceuticals, edible oils, and cosmetics. It automates the entire process of heating, stretching, and blowing PET preforms into finished bottles.
A fully automatic machine handles preform loading, heating, stretching, blowing, and bottle ejection without manual intervention, while a manual or semi-automatic machine requires operators to load preforms and remove finished bottles by hand.
Production capacity depends on the number of cavities and machine model, ranging from a few hundred to several thousand bottles per hour. Suraj Plastic Industries offers multiple configurations to match different production requirements.
These machines are widely used in the beverage, pharmaceutical, edible oil, cosmetics, and household chemical packaging industries for manufacturing PET bottles and containers.
Suraj Plastic Industries offers engineering expertise, quality-tested machines, and reliable after-sales support, making us a trusted choice for packaging manufacturers looking for durable and efficient stretch blow moulding solutions.
Regular maintenance includes checking heating lamps, lubricating stretch rods, inspecting mould alignment, and servicing the air compressor system. Suraj Plastic Industries provides maintenance guidance and support to customers post-installation.
Yes, with a quick mould change system, the same machine can be adapted to produce different bottle shapes and sizes by simply changing the mould set, offering flexibility for manufacturers with diverse product lines.
Conclusion
A Fully Automatic Stretch Blow Moulding Machine is a valuable investment for packaging manufacturers looking to scale production, reduce labour dependency, and maintain consistent bottle quality. With advanced engineering, energy-efficient systems, and dependable after-sales support, Suraj Plastic Industries stands as a reliable partner for businesses looking to set up or upgrade their PET bottle manufacturing line.
Get in touch with Suraj Plastic Industries today to discuss your requirements and get a customized machine quote.
