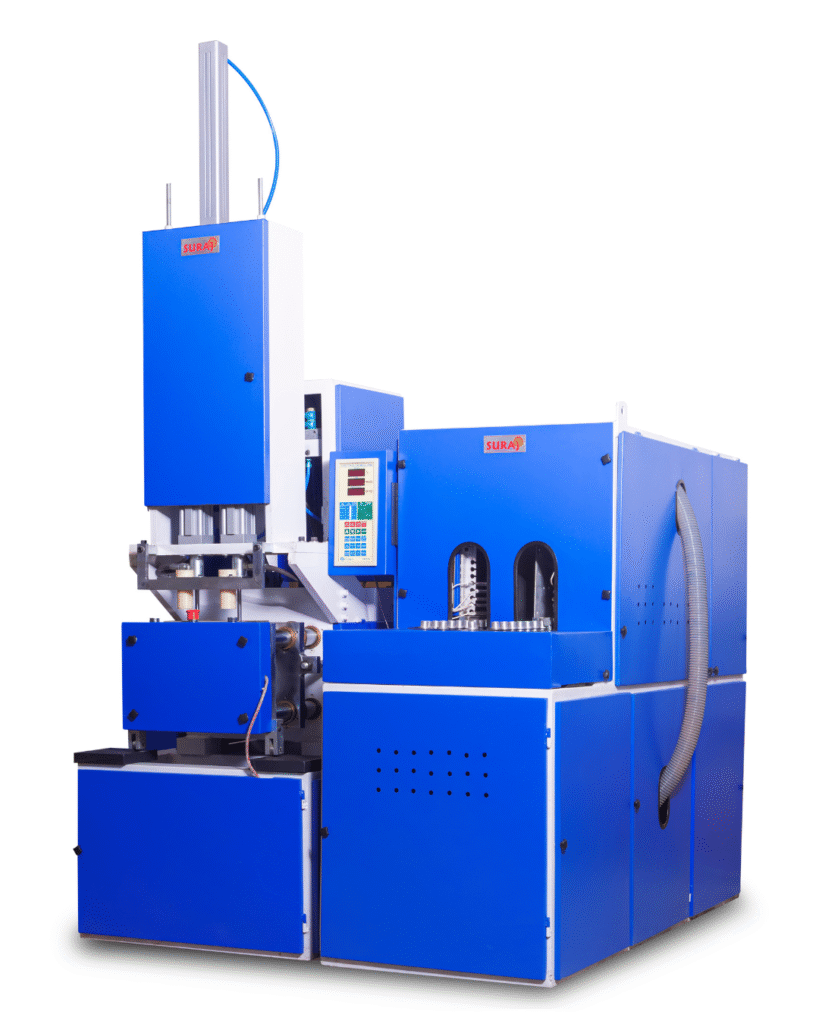

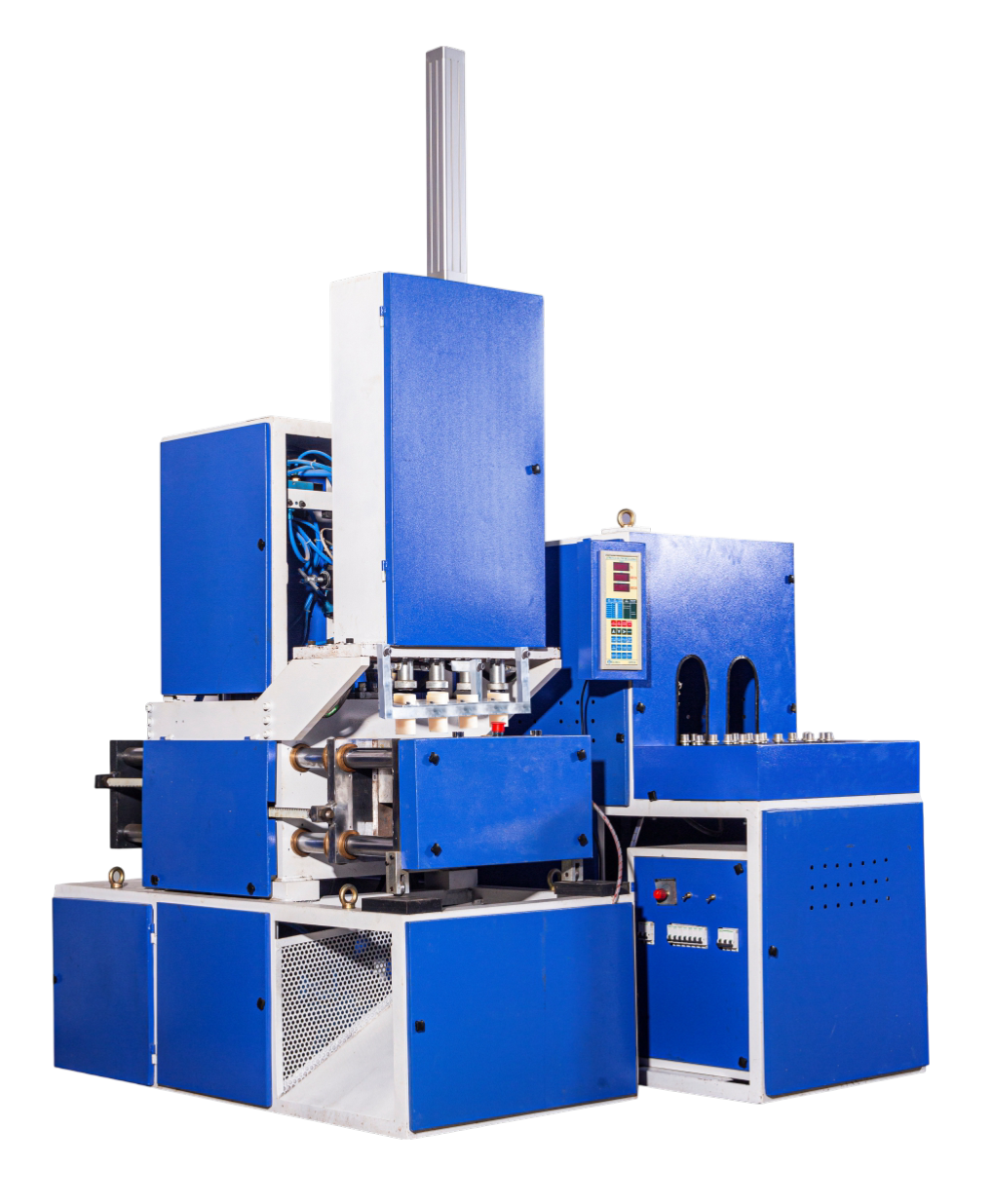

Semi Automatic Stretch Blow Moulding Machine
Semi Automatic Stretch Blow Moulding Machine
This machine is designed for manufacturing PET bottles and jars with high precision and consistent output. Ideal for water, beverages, cosmetics, household and industrial packaging.
It features hydro-pneumatic operation, efficient heating, and stable molding performance. Durable design ensures long working life with low maintenance needs.
- Supports bottle sizes from 50 ML to 25 LTR
- Output capacity up to 700 Bottles Per Hour
- Hydro-Pneumatic smooth operation for consistent shaping
Technical Specification
| DESCRIPTION MODEL | HP-1000-2B | HP-2000-2JB | HP-5000-JB | HP-20-CS | |
|---|---|---|---|---|---|
| PRODUCT SIZE | 50 ML – 1000 ML | 50 ML – 3000 ML BOTTLE / JAR | 50 ML – 7500 ML | 5 LTR – 25 LTR | |
| PRODUCT OUTPUT | 700 BPH | 450-700 BPH | 350-700 BPH | 150-240 BPH | |
| MOULD CAVITY | 2 CAVITY | 2 CAVITY | 2 CAVITY UPTO 3LTR / 1 CAVITY UPTO 7.5LTR | 1 CAVITY | |
| NECK SIZE | 19-32 MM | 19-96 MM | 19-120 MM | 45-135 MM | |
| HEATER POWER | 10 KW | 12 KW | 12 KW | 32 KW | |
| CLAMPING STROKE | 150 MM | 200 MM | 250 MM | 350 MM | |
| WORKING PRESSURE | 8 KG / CM² | 8 KG / CM² | 8 KG / CM² | 8 KG / CM² | |
| BLOWING PRESSURE | 22-25 KG / CM² | 22-25 KG / CM² | 22-25 KG / CM² | 22-25 KG / CM² | |
| AIR REQUIREMENT | 0.7 M³/MIN | 0.8 M³/MIN | 0.9 M³/MIN | 2 M³/MIN | |
| OPERATION | HYDRO-PNEUMATIC | HYDRO-PNEUMATIC | HYDRO-PNEUMATIC | HYDRO-PNEUMATIC | |
| AREA REQUIRED | 5 MTR x 5 MTR | 5 MTR x 5 MTR | 5 MTR x 5 MTR | 5 MTR x 5 MTR | |
| STAFF REQUIRED | 2 | 2 | 2 | 2 | |
