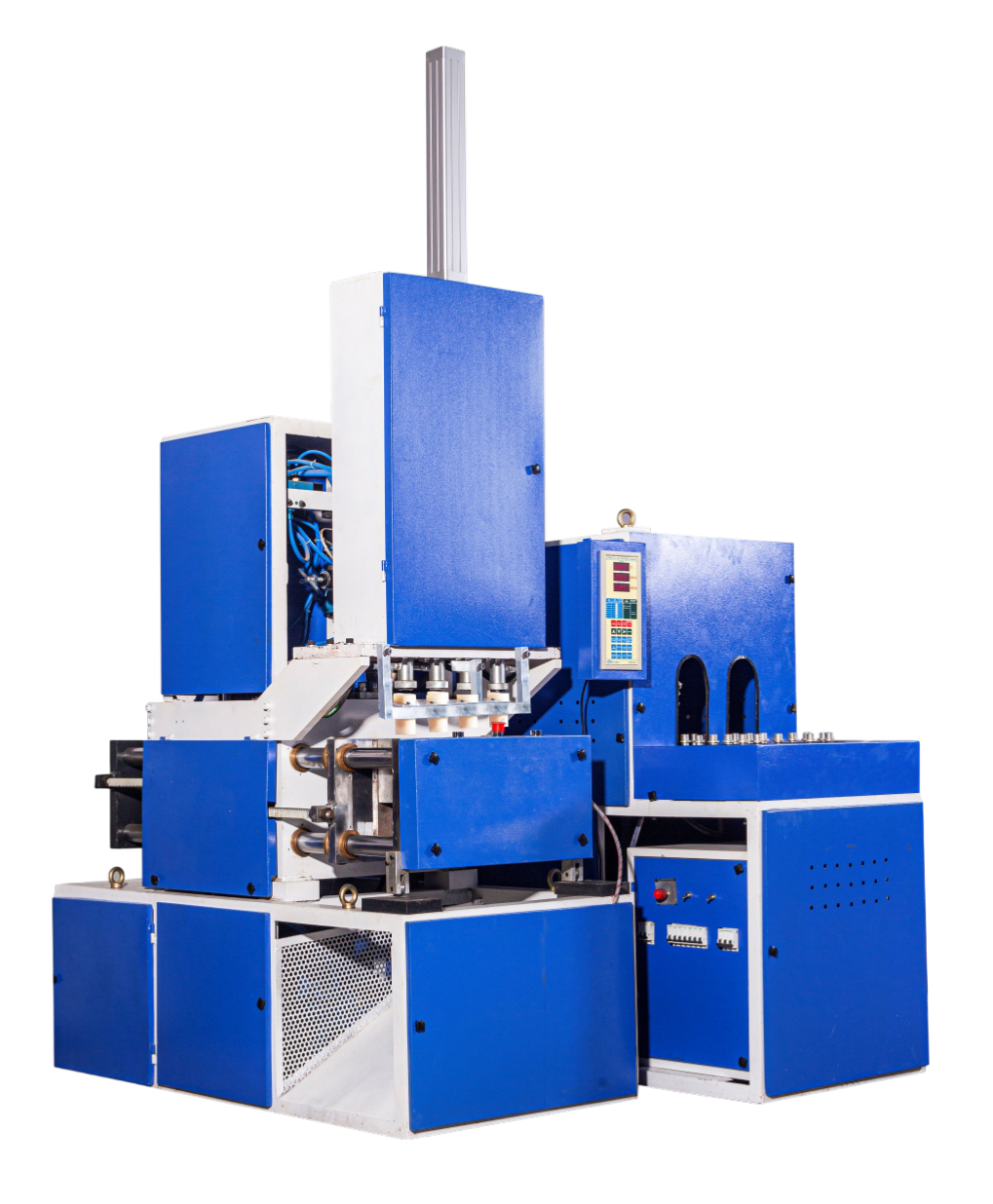

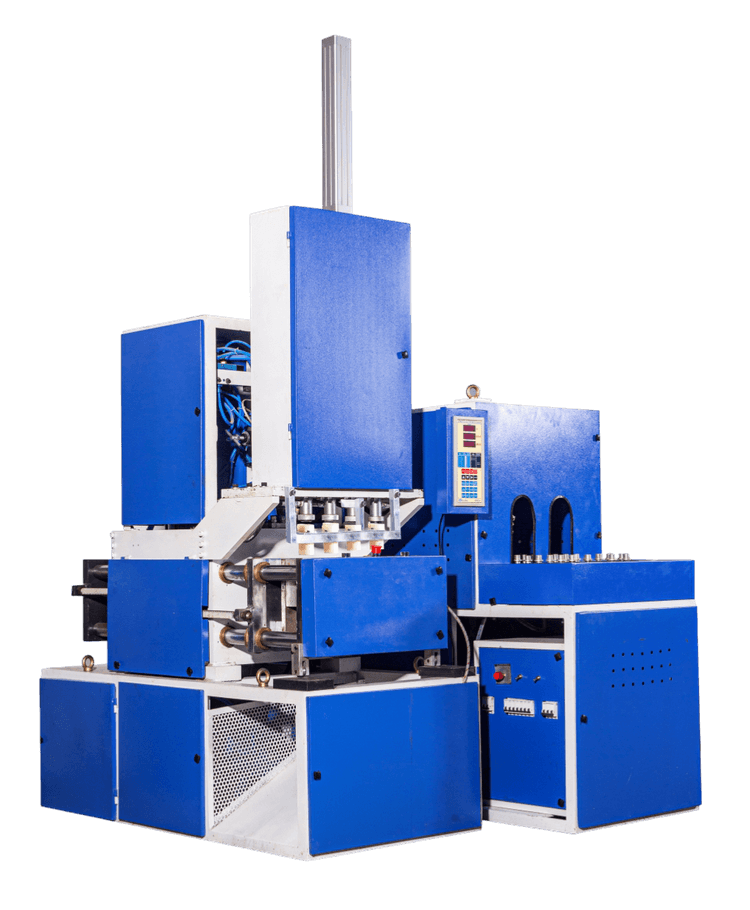

High Speed Pet Perform Stretch Blow Moulding Machine
This High Speed Pet Perform Stretch Blow Moulding Machine is engineered for fast and efficient production of PET bottles and jars. It ensures uniform wall thickness, clear bottle finish, and reliable output for beverages, edible oil, cosmetics, household, and chemical packaging.
Equipped with hydro-pneumatic technology and high-performance heating, the machine delivers stable operation with minimal maintenance. Designed for high productivity, it offers smooth mould operation and consistent bottle quality.
High Production Speed up to 2400 Bottles Per Hour
Available in 2, 3, and 4 Cavity Configurations
Hydro-Pneumatic Smooth Operation
Supports 50 ML to 7000 ML Bottle / Jar Range
Product Details
Technical Specification
| DESCRIPTION / MODEL | HS-1000-2B | HS-1000-4B | HS-2000-2B | HS-2000-3B | HS-5000-3B2J |
|---|---|---|---|---|---|
| Product Size | 50 ML – 1000 ML | 50 ML – 1000 ML | 50 ML – 2000 ML | 50 ML – 2000 ML | 50 ML – 7000 ML Bottle / Jar |
| Output Theoretical | 1400–1600 BPH upto 1 LTR Bottle upto 28 MM Neck | 2400–3000 BPH upto 1 LTR Bottle upto 28 MM Neck | 1200–1400 BPH upto 2 LTR Bottle upto 28 MM Neck | 1800–2200 BPH upto 2 LTR Bottle upto 28 MM Neck | 2000 BPH upto 28 MM / 750 BPH upto 96 MM |
| Mould Cavity | 2 Cavity | 4 Cavity | 2 Cavity | 3 Cavity | 3 Cavity upto 2 LTR / 1 Cavity 3 LTR & Above |
| Neck Size | 19–38 MM | 19–38 MM | 19–38 MM | 19–38 MM | 19–120 MM |
| Heater Power | 28 KW | 28 KW | 28 KW | 28 KW | 28 KW |
| Clamping Stroke | 175 MM | 175 MM | 200 MM | 200 MM | 250 MM |
| Working Pressure | 8 KG / CM² | 8 KG / CM² | 8 KG / CM² | 8 KG / CM² | 8 KG / CM² |
| Blowing Pressure | 22–25 KG / CM² | 22–25 KG / CM² | 22–25 KG / CM² | 22–25 KG / CM² | 22–25 KG / CM² |
| AIR REQUIREMENT | 1.2 M³ / MIN | 1.4 M³ / MIN | 1.4 M³ / MIN | 1.4 M³ / MIN | 1.4 M³ / MIN |
| OPERATION | HYDRO-PNEUMATIC | HYDRO-PNEUMATIC | HYDRO-PNEUMATIC | HYDRO-PNEUMATIC | HYDRO-PNEUMATIC |
| AREA REQUIRED | 5 MTR × 5 MTR | 5 MTR × 5 MTR | 5 MTR × 5 MTR | 5 MTR × 5 MTR | 5 MTR × 5 MTR |
| STAFF REQUIRED | 2 | 2 | 2 | 2 | 2 |
